BIFD1/2 IRON BASKET STRAINERS

See all Basket Strainers

The Model BIFD is a made-in-the-USA iron basket strainer can be used in applications for water, oil, gas or steam where protection from foreign matter in a pipeline is required.

It is constructed from cast iron castings that have drilled 125# flanges for the BIFD1 and 250# for the BIFD2 that are in accordance with ASME B16.5.  Perforated 304 stainless steel screens are welded along the seam for maximum strength.   Different size perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements.  If the media is not specified, screens for water will be supplied.  All strainers are supplied with plugged NPT threaded drain connections.  Options include epoxy coating and galvanizing, special flange drilling, and the addition of magnets.

Non-Shock Working Pressure is for BIFD1 125psi at 450F for steam, and 200psi at 150F for Water/Oil/Gas (WOG).  For the BIFD2 it is 250psi at 450F for steam, and 500psi at 150F for WOG.

Meets or exceed government specification WW-S-2739 (Supersedes MIL-S-16293).

Cleaning of the strainer is accomplished by removing the cover and pulling out the basket.  Also available with a clamp top cover in the BIFCD Model.  See the maintenance instructions for more detailed information on servicing the strainer, and the submittal sheet for addtional technical data.

On test serverOn test serverOn test serverOn test server
swipe to see more products
On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test serverOn test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server On test server

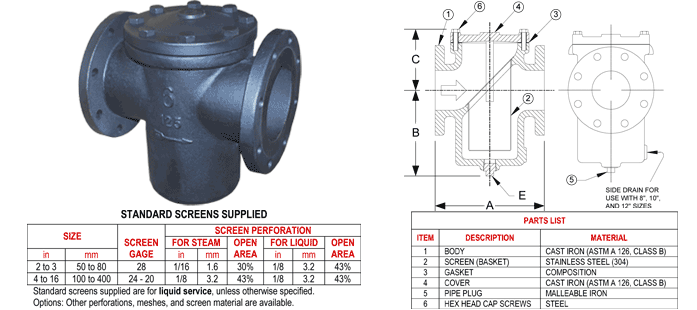

MODEL SIZE
(in)
ENDS CLASS PRESS (STEAM)
(psi)
PRESS (WOG)
(psi)
WT
(lbs)
A
(in)
B
(in)
C
(in)
E
(in)
ITEM NO
 BIFD1   2   125# FLGS   125   125   200   23   8   6   3-1/2   3/4   BIFD10200
 BIFD2   2   250# FLGS   250   250   500   29   8-1/2   3-7/8   5-1/4   1/2   BIFD20200
 BIFD1   2-1/2   125# FLGS   125   125   200   33   8-1/4   7   3-3/4   3/4   BIFD10250
 BIFD2   2-1/2   250# FLGS   250   250   500   53   9-1/4   5-3/4   5-1/4   3/4   BIFD20250
 BIFD1   3   125# FLGS   125   125   200   44   9-3/4   8-1/4   4-1/4   3/4   BIFD10300
 BIFD2   3   250# FLGS   250   250   500   65   9-1/2   5-3/4   5-1/4   3/4   BIFD20300
 BIFD1   4   125# FLGS   125   125   200   67   11-1/2   9   4-3/4   1   BIFD10400
 BIFD2   4   250# FLGS   250   250   500   107   11-13/16   8-9/16   6   1   BIFD20400
 BIFD1   5   125# FLGS   125   125   200   88   13-1/8   9-3/4   6   1   BIFD10500
 BIFD2   5   250# FLGS   250   250   500   187   15-3/8   10-1/2   7-3/4   1   BIFD20500
 BIFD1   6   125# FLGS   125   125   200   120   14-3/4   10-1/2   6-1/4   1   BIFD10600
 BIFD2   6   250# FLGS   250   250   500   224   15-1/2   10-1/2   7-3/4   1   BIFD20600
 BIFD1   8   125# FLGS   125   125   200   220   18-1/2   12-3/4   9   1-1/2   BIFD10800
 BIFD1   10   125# FLGS   125   125   200   353   20-1/8   14-3/4   10-3/4   1-1/2   BIFD11000
 BIFD1   12   125# FLGS   125   125   200   523   26-1/4   17-1/2   13-1/2   2   BIFD11200
 BIFD1   14   125# FLGS   125   125   200   814   30-1/4   23-1/4   14-1/4   3   BIFD11400
 BIFD1   16   125# FLGS   125   125   200   1041   33-1/8   24-1/4   15   3   BIFD11600
