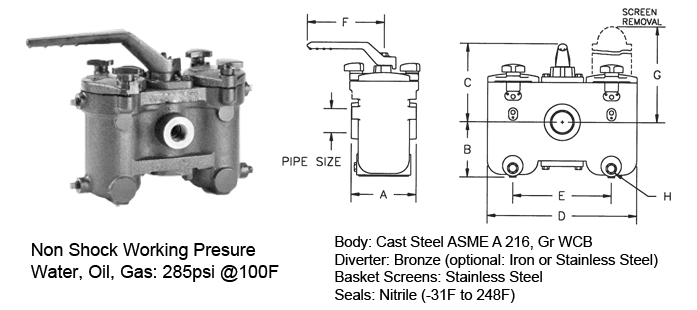

The Model DCT-K is an carbon steel threaded duplex strainer for use in continuous flow applications to avoid shutting down the system for cleaning. Not recommended for steam service. Simply moving the handle to the right or left will divert flow to chamber under the handle, which allows for cleaning the basket not in use.
Standard diverters are bronze, but are also available in carbon steel or stainless steel. And different size basket perforations and meshes are available in stainless steel, monel, and brass to meet specific media requirements. Other options include magnetic inserts, 100% shutoff seals, air eliminators, mounting hardware, and special sealing materials.
Non-Shock Working Pressure for the DCT is 200psi at 150F for water, gas, and oil (WOG) liquids.
See the submittal sheet for additional technical data.
| MODEL |
SIZE
(in)
|
ENDS |
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
F
(in)
|
G
(in)
|
H
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCT | 3/4 | THREAD | 275 | 35 | 4-3/4 | 4-1/8 | 5-7/8 | 10-5/8 | 6-11/16 | 6-7/8 | 8-11/16 | 1/2 | DCT0075 |
| DCT | 1 | THREAD | 275 | 35 | 4-3/4 | 4-1/8 | 5-7/8 | 10-5/8 | 6-11/16 | 6-7/8 | 8-11/16 | 1/2 | DCT0100 |
| DCT | 1-1/4 | THREAD | 275 | 51 | 5-3/8 | 5-3/4 | 6-7/8 | 11-3/16 | 7-1/4 | 6-7/8 | 12 | 1/2 | DCT0125 |
| DCT | 1-1/2 | THREAD | 275 | 51 | 5-3/8 | 5-3/4 | 6-7/8 | 11-3/16 | 7-1/4 | 6-7/8 | 12 | 1/2 | DCT0150 |
| DCT | 2 | THREAD | 275 | 132 | 7-1/4 | 6-1/8 | 8-3/4 | 16-3/4 | 11 | 8-1/4 | 13-13/16 | 1/2 | DCT0200 |
| DCT | 2-1/2 | THREAD | 275 | 132 | 7-1/4 | 6-1/8 | 8-3/4 | 16-3/4 | 11 | 8-1/4 | 13-13/16 | 1/2 | DCT0250 |
